The geometric correction

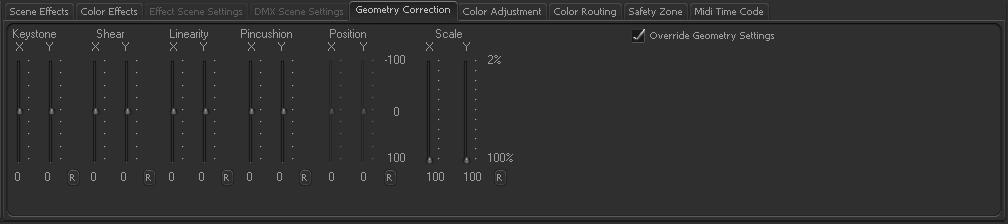

At the geometry correction projections can be adjusted in its size and position and in case of keystone be equalized by slide controls. The equalization has been programmed to never be corrected throughout the whole projection area because this would not make any sense at any time. Any corrections will be performed within the whole projection area.

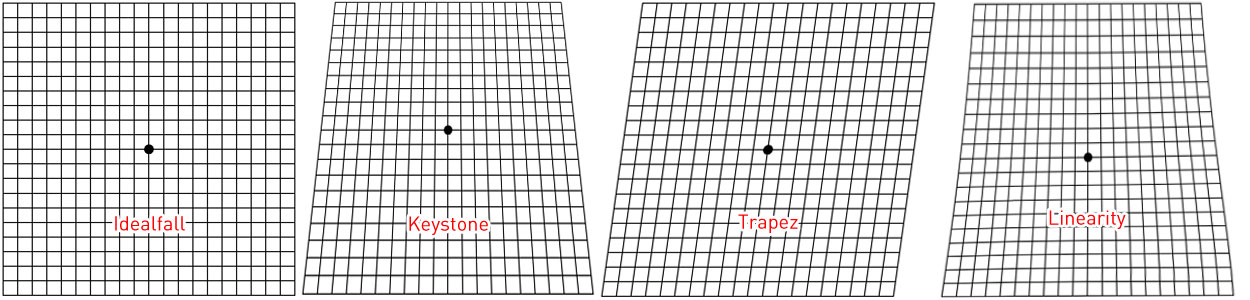

  1. Overview of different types of geometry correction


        2.


        To adjust a keystone projection you should load a check board pattern from the test images and adjust the projection area with this pattern.
